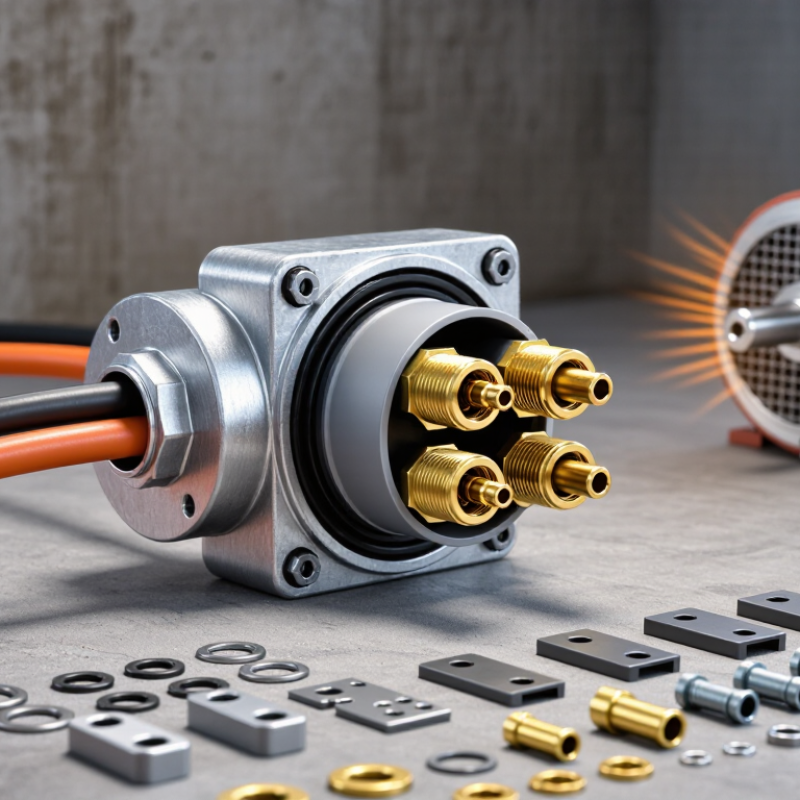

How to Choose High Voltage Connectors for Your Application

Selecting high voltage connectors is a practical engineering decision, not a catalog exercise. The right choice depends on operating voltage, current, environment, cable size, and installation method. A connector that fits the drawing may still fail when exposed to vibration, moisture, heat, or repeated mating. Small details matter.

For transparency, the following is an original illustrative quote, not a verified statement from a real expert: “A connector is only reliable when its ratings match the real conditions at the interface.” The fictional speaker is Dr. Elena Park, a high-voltage application engineer created for this draft. Before publication, replace this attribution with a verified quotation from a qualified specialist. That distinction matters. Trust depends on accurate sourcing.

This guide examines the selection factors that shape performance and service life. It covers voltage and current ratings, insulation, creepage and clearance, contact resistance, shielding, and environmental protection. It also considers cable compatibility, mounting space, mating cycles, and maintenance access. Imagine a connector installed beside a warm motor, where a tight bend pulls against the cable entry. That detail can influence the choice as much as a headline rating. Check the datasheet, then compare it with actual operating conditions. The fit may look obvious. It may not be. A careful review helps engineers narrow options without treating any single specification as the whole answer.

How to Choose High Voltage Connectors for Your Application
Table of Contents [Hide]
1 Define the Application’s Electrical and Environmental Requirements
2 Determine Voltage, Current, and Insulation Ratings
3 Choose a Connector Type and Contact Configuration
4 Assess Materials, Sealing, and Safety Features
5 Confirm Compatibility, Installation, and Maintenance Needs

Define the Application’s Electrical and Environmental Requirements

When choosing a high voltage connector, define the electrical conditions it must handle in normal operation and during faults. Record the system’s working voltage, possible transient peaks, continuous current, and expected load cycles. A connector rated only for the nominal voltage may not provide enough margin. Check the insulation rating, creepage distance, and clearance against the equipment layout and applicable design requirements. Cable size matters too: a thick conductor may need a termination that is difficult to assemble in a tight enclosure. Small details count.

Then map the actual environment, not just the conditions listed in a room-temperature specification. Note minimum and maximum temperatures, condensation, dust, chemicals, vibration, and exposure to water. Altitude can affect insulation performance, so include installation height where relevant. Check how often the connector will be mated, and whether technicians need access while wearing gloves. A sealed housing can still fail if the cable exit or panel interface is poorly matched. It is easy to focus on voltage and overlook handling. That deserves a second look. Compare the stated ratings with the complete assembly, including cable, seals, and termination method, and verify critical limits through suitable testing before release.

Determine Voltage, Current, and Insulation Ratings

Start with the system’s maximum continuous voltage, not just its nominal label. Check switching surges and temporary overvoltage too. IEC 60502-2:2014 covers extruded-insulation cable systems rated from 6 to 30 kV. Use that range as a voltage-class reference, not proof that a connector is suitable. IEC 60071-1:2019 addresses insulation coordination for systems above 1 kV. Compare the connector’s rated voltage and impulse withstand with the equipment and installation requirements.

Current ratings need context. A connector’s published ampacity depends on test conditions, including conductor size, ambient temperature, and cooling. A warm cabinet, tightly bundled cables, or repeated high-current cycles can raise contact temperatures. Allow for those conditions and check the manufacturer’s derating data.

Then assess insulation ratings against pollution, moisture, altitude, and required creepage and clearance distances. Small details matter. A clean laboratory rating may not reflect a dusty enclosure or a damp cable entry. That gap deserves a second look.

Record the selected voltage, continuous and peak current, insulation level, and test conditions in the design review. Then verify the assembled connection with suitable electrical and thermal testing.

Choose a Connector Type and Contact Configuration

Choose the connector style around the physical path of power. A cable-to-cable connector suits a removable harness, while a panel-mounted type provides a fixed equipment interface. Board-mounted versions can save space, but leave less room for inspection and heat management. Small details matter. Check rated voltage and current under actual temperature conditions, then verify creepage distance, clearance, insulation, and shielding against the equipment layout. A compact housing may look ideal on a drawing and still be awkward with gloves or a tight bend radius.

Contact configuration depends on circuit needs, not just pin count. A single-pole connector can separate high-voltage paths; a two-pole design may simplify paired conductors. Add low-voltage interlock contacts only when the system needs a monitored connection state, and confirm their sequence during mating. The IEA’s Global EV Outlook 2024 reports nearly 14 million electric car sales in 2023, around 18% of global car sales. Its 2025 edition says sales exceeded 17 million in 2024, topping 20%. These figures show growing use of electrified systems, but they do not specify connector requirements. Fit is not enough. Compare contact material, cable range, sealing, vibration resistance, and required mating cycles with the application’s real duty profile. I would also prototype the chosen arrangement; field access is often less generous than the CAD view suggests.

Assess Materials, Sealing, and Safety Features

Choose materials for the real operating environment, not just the catalog rating. Copper-alloy contacts support current flow, while suitable plating helps limit corrosion and contact resistance. For housings, compare temperature rating, flame behavior, and resistance to oils or cleaning chemicals. A brittle seal can fail after repeated heat cycles. Small details matter. The U.S. Department of Energy’s Alternative Fuels Data Center lists DC fast-charging equipment at power levels up to 350 kW, underscoring why contact heating and cable temperature deserve careful review. Match connector ratings to continuous load, not only brief peak demand.

Sealing and safety features need equal scrutiny. An IP67 rating indicates dust-tight protection and specified temporary-immersion performance under IEC 60529; it does not prove protection in every installation or when unmated. Check the tested configuration. Look for touch-safe contacts, secure locking, mechanical keying, and an interlock that prevents energizing an exposed connection. Confirm creepage and clearance distances suit the working voltage and contamination level. Ask for test evidence covering temperature rise, vibration, and seal aging. A datasheet may look complete, yet omit the mated-state conditions. That gap is worth questioning.

How to Choose High Voltage Connectors for Your Application — Assess Materials, Sealing, and Safety Features

Selection Dimension Options or Typical Characteristics What to Assess Practical Selection Guidance Verification Needed
Rated voltage and current Connector ratings depend on the complete design, including contact geometry, insulation, temperature, and wiring. Continuous operating voltage, current profile, switching conditions, transient overvoltage, and temperature rise. Select ratings that cover normal operation and foreseeable electrical transients. Check current derating at the actual ambient temperature and cable size. Confirm ratings and test conditions in the connector datasheet and applicable equipment standards.
Contact material and plating Contacts commonly use copper alloys for electrical conductivity and mechanical strength. Tin or silver plating may be used, depending on the design. Contact resistance, current capacity, corrosion exposure, mating cycles, and compatibility with the cable conductor. Choose a contact system specified for the expected current and environment. Do not assume that plating types are interchangeable or suitable for every duty cycle. Check contact resistance limits, allowable conductor range, crimp or termination process, and environmental test results.
Insulator material Engineering thermoplastics such as polyamide (PA), polybutylene terephthalate (PBT), and polyphenylene sulfide (PPS) are used in connector housings and insulating components. Operating temperature, dimensional stability, chemical exposure, flammability requirements, and resistance to tracking. Match the material grade to the application. Performance varies by formulation, reinforcement, geometry, and manufacturing process. Review the specific material grade, temperature limits, flammability classification, and electrical properties stated by the supplier.
Sealing and ingress protection Sealed designs may use elastomeric interfaces and cable seals. IP ratings describe protection against access, solid objects, and water under specified test conditions. Water spray, temporary immersion, dust, pressure washing, chemicals, and whether the connector is mated or capped during exposure. Choose an ingress-protection level based on the real installation conditions. Check that the rating applies to the assembled connector, cable, and required mating state. Confirm the test standard and exact rating. Under IEC 60529, IP67 includes dust-tight protection and temporary immersion under defined test conditions; it does not establish suitability for every water exposure.
Touch protection Shrouded contacts, recessed live parts, and protective covers can reduce the chance of accidental contact. Access to energized contacts during unmating, servicing, assembly, and handling. Prefer designs that protect live contacts in the intended disconnected state. Define safe isolation and handling procedures for service personnel. Check the applicable touch-protection requirements and test method for the equipment and installation.
High-voltage interlock (HVIL) An HVIL circuit can signal that a connector or cover has been opened or disconnected. Interlock timing, circuit monitoring, system response, and behavior during faults or partial disconnection. Use HVIL as part of a system-level safety design. The interlock itself does not remove hazardous voltage; the connected equipment must respond appropriately. Validate the complete detection and shutdown sequence, including stored-energy discharge and fault conditions.
Insulation coordination Clearance is the shortest distance through air; creepage is the shortest distance along an insulating surface. Working voltage, impulse voltage, pollution degree, insulation material group, altitude, and enclosure conditions. Do not select a connector by voltage rating alone. Confirm that clearances and creepage distances suit the installation environment. Assess the applicable insulation-coordination requirements, such as IEC 60664-1 where relevant to the equipment.
Mechanical retention and keying Locking mechanisms, polarized housings, and keyed interfaces help maintain connection and prevent incorrect mating. Vibration, shock, cable pull, mating cycles, assembly access, and risk of cross-connection. Choose a positive locking arrangement and clear keying for the installation. Provide strain relief so cable loads are not carried by the contacts. Review retention-force, vibration, shock, and durability test data for the intended application.
Operating environment Applications may involve heat, cold, moisture, salt, oils, cleaning agents, UV exposure, or vibration. Temperature extremes, thermal cycling, chemical contact, condensation, and expected service life. Evaluate the complete connector assembly, seals, cable jacket, and mounting arrangement against the site conditions. Confirm environmental ratings and test methods; verify compatibility with the actual fluids and cleaning agents.
Standards and certification Requirements vary by industry, equipment type, installation location, and jurisdiction. Electrical safety, insulation, flammability, environmental, and sector-specific compliance requirements. Identify the governing standards early and select a connector qualified for the intended end use, rather than relying on a generic “high voltage” description. Check current certificates, declarations, test reports, and installation instructions for the exact connector configuration.

Note: This table is a general selection guide, not a substitute for engineering review. Ratings and performance depend on the exact connector configuration, assembly, installation, and test conditions.

Confirm Compatibility, Installation, and Maintenance Needs

Choosing a high-voltage connector starts with the equipment, not the catalogue. Confirm system voltage, continuous current, conductor material, cable diameter, and insulation type. Check that the connector’s test rating suits the application and operating environment. Small mismatches matter. A connector that fits mechanically may still create poor contact or inadequate insulation.

Installation conditions deserve equal attention. Check working space, cable bend radius, tools, and whether installers can follow the manufacturer’s specified preparation and torque. Keep contact surfaces clean and dry; a small amount of contamination can undermine a sound-looking joint. The International Energy Agency’s 2023 report, Electricity Grids and Secure Energy Transitions, estimates that 80 million kilometres of grids must be added or refurbished by 2040. That scale makes repeatable installation procedures especially important.

Maintenance needs should shape the choice before purchase. Look for accessible inspection points and clear replacement instructions. Set inspection intervals around operating conditions, service history, and equipment guidance; one schedule rarely suits every site. Record connection temperatures, visible discoloration, corrosion, and any changes in operating load. A checklist is not perfect: hidden defects can escape a visual inspection. Pair routine checks with suitable electrical testing, performed by qualified personnel using procedures appropriate to the equipment. Keep test results with installation records, so later readings have a useful baseline.
